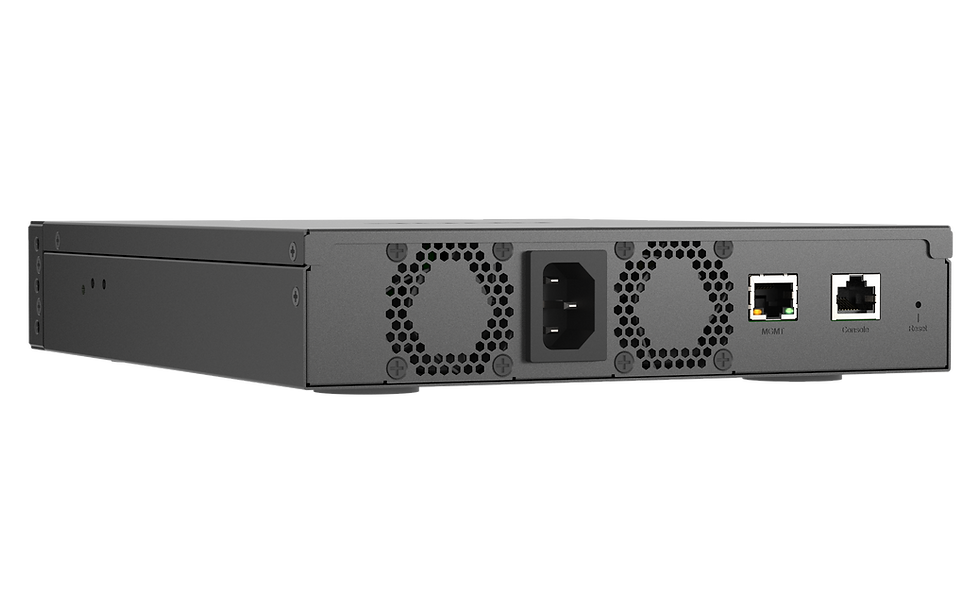

Overview:The QSW-M7308R-4X is a 100GbE L2 Managed Switch with four 100GbE QSFP28 and eight 25GbE SFP28 ports. The QSW-M7308R-4X can uplink to 100G/25G servers and NAS in server rooms or connect to 100G/25G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. With competitive pricing and space-saving features, the QSW-M7308R-4X enables businesses to quickly upgrade to an ultra-high-speed backbone network infrastructure for building ultra-high-speed network transmission and storage solutions. The QSW-M7308R-4X is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
QSW-M7308R-4X
QSW-M7308R-4X Management Type Web Managed Number of Ports 12 100GbE QSFP28 4 25GbE SFP28 8 Management Port 1 x 1GbE RJ45 Power Supply Description Internal Power Supply Unit Max. Power Consumption 100W Input Power Type AC Input Voltage Range 100 ‒ 240VAC, 50/60Hz MAC Address Table 32K Total Non-Blocking Throughput 600Gbps Switching Capacity 1200Gbps Management Interface Web Console RJ45 Fan PWM VAPO Bearing fan x 2 Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of ServiceForm Factor Half-width rackmount LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status/LocaterButtons Reset button Dimensions (HxWxD) 43.3 x 207 x 248.8 mm Weight (Net) 3.92 lbs Weight (Gross) 5.8 lbs Operating Temperature 0˚C to 40°C (32°F to 104°F) Relative Humidity 5%–95% (non-condensing) Certifications CE, FCC, VCCI, BSMI Electromagnetic Compliance CLASS A Jumbo Frames 9K Warranty 2 Years Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
